Mild Steel
Lowest finished-cost substrate for indoor painted frames, brackets, guards, and structural work.
Guide(1)
Gallery(64)
Custom Fabricated Machine Guard
Custom metal fabrication for an industrial machine safety guard — laser-cut steel frame, CNC press-brake-formed panels, and MIG-welded hinges, finished with powder coat. Built end-to-end in our Brampton shop on a single PO so it ships ready to install.
Open
Laser Cut Steel Brackets
Laser cut mild steel mounting brackets — 1/4″ plate cut on the TRUMPF Trumatic L3050 with pilot holes and slots in a single CAD program. Production batch of 200 units shipped in 4 days, no secondary deburring required.
Open
Laser Cut Mounting Plates
Laser cut mild steel mounting plates — 1/2″ plate with bolt patterns cut to drawing. Multiple identical units nested on a single sheet for high material yield, edge-prepped ready for installation.
Open
Steel Flange Ring
Laser cut steel flange ring in heavy-gauge 1″ mild steel plate. Bolt-hole pattern to drawing, edge-prepped for welding into a larger pressure-vessel assembly. ±0.005″ on critical dimensions.
Open
Press Brake Formed Enclosure Panels
CNC press brake formed enclosure panels — five sequential bends per panel on the Amada HDS 1303 NT, ±0.5° angle tolerance held across the production run. Brampton sheet metal bending services for electrical and industrial equipment makers.
Open
Sheet Metal Enclosure
Custom sheet metal bending services for a multi-bend enclosure formed on the Amada HDS press brake. Hemmed-edge finish for safer handling, mounting hardware locations punched on the TRUMPF Trumatic 200 — paint-ready surface.
Open
Welded Steel Frame Assembly
Custom welded steel frame assembly — multi-piece structural weldment with continuous MIG fillet welds at every joint, fabricated from press-brake-formed and laser-cut steel components in our Brampton shop. Cross-bracing geometry verified to drawing pre-paint.
Open
Welded Structural Support Brackets
Industrial welding services for structural support brackets — laser-cut steel plate joined with full-penetration MIG welds for conveyor and material-handling installations. Loaded to 5,000 lbf service rating.
Open
Gas Tank Components
Custom welded gas tank components — rolled cylinder shells with fully-welded end caps for pressure-rated weldments. Each tank inspected and traceable per CofC; staged in our Brampton welding cell for shipping.
Open
Punched Ventilation Panel
CNC turret punched ventilation panel with a high-density louvre pattern punched on the TRUMPF Trumatic 200. Each louvre formed integral to the punching cycle — no secondary forming step, production yield of 200 panels per shift.
Open
Powder Coated Equipment Frame
Custom metal fabrication for a powder-coated industrial equipment frame — laser-cut, CNC press-brake-formed, MIG-welded, then powder-coated to RAL spec. Single PO, single shipment, coating holds through site assembly and service.
Open
Electrical Equipment Chassis
Custom electrical equipment chassis with punched mounting holes, lance-and-form tabs, and welded reinforcement gussets. Lance-and-form features eliminated 12 separate bracket parts from the original assembly — ships ready for component install.
Open
Finished Parts — Production Run
A typical metal fabrication production run shipping out of our Brampton shop — laser-cut, formed, welded, and finished parts staged for delivery. Same-day quotes, 1–2 week turnaround, free GTA pickup or LTL freight.
Open
TRUMPF L3050 in Operation
Behind the scenes in our Brampton laser bay — the TRUMPF Trumatic L3050 mid-cut on a production sheet. The 5 kW CO₂ laser cutting head delivers oxide-free edges that ship without secondary deburring on most jobs.
Open
Amada Press Brake Setup
Operator setting up a multi-bend production run on the Amada HDS 1303 NT in our Brampton brake cell. Sequential 5–7 bend programs handled in a single setup with the 7-axis CNC backgauge — sheet metal bending services for OEM and one-off work.
Open
Shop Floor — Brampton
12,000 square feet of metal fabrication production floor in Brampton, Ontario. Laser bay, CNC press brakes, mill, surface grinder, and welding cells all live in this room — every job runs through here.
Open
Shop Floor — Detail
Inside our Brampton metal fabrication shop, between the laser bay and the welding cells. Every job stays in-house from cut to weld — no subcontractors, no offsite hand-offs, no chasing parts across multiple shops.
Open
Custom Gaskets
Custom laser cut gaskets — single-piece flat gaskets cut from supplied CAD in metal and non-metallic stock. No minimum order; ideal for prototype, maintenance, and replacement work.
Open
Enclosure Blanks
Laser cut mild steel enclosure blanks for industrial control panels — cut on the TRUMPF L3050 with bend-line scoring, ready for CNC press brake forming. One workflow, no part transfers.
Open
Heat Shields
Laser cut heat shields in aluminized steel for automotive and industrial thermal protection. CNC laser cutting with repeatable geometry across the production run.
Open
Production Run Parts
Production laser cutting — nested production lots from 100 to 10,000 parts on a single sheet. Repeat orders where tolerance, yield, and on-time delivery matter, run from our Brampton shop for GTA equipment manufacturers.
Open
Base Plates
Laser cut base plates in heavy-gauge mild steel — countersunk holes and registration cuts for machinery installs and equipment mounting. Edge-prepped ready for the install crew.
Open
Custom Gaskets
Single-piece flat custom laser cut gaskets in metal and non-metallic stock — cut from supplied CAD with no minimum order. Same-day quotes for prototype, maintenance, and small-batch production.
Open
Enclosure Blanks
Laser cut sheet metal enclosure blanks for electrical boxes — flat sheet ready for CNC press brake forming. Cut on the TRUMPF L3050 in a single program for clean blank-to-form transitions.
Open
Gears Sprockets
Laser cut gears and sprockets in mild steel plate — replacement parts for industrial machinery and maintenance teams. Cut to drawing or reverse-engineered from a sample, ready for installation.
Open
Heat Shields
Aluminized-steel laser cut heat shields for automotive and industrial heat protection. Repeat-volume CNC laser cutting from supplied CAD or DXF files.
Open
Prototype Parts
Laser cut prototype parts — single-unit prototypes cut on production equipment with no minimum order. Same-day quotes, sketch or CAD welcome, finished ready for fit-check.
Open
Architectural Cladding
Architectural metal cladding — formed sheet metal panels with consistent bend lines for facade and construction work. CNC press brake forming with reproducible geometry across long runs.
Open
Bent HVAC Components
HVAC sheet metal bending in galvanized steel — ductwork elbows, transitions, and end caps formed on the CNC press brake for commercial mechanical contractors.
Open
Box Sections
CNC press brake formed box sections — four-sided weld-ready forms with overlap joints. Custom metal bending for enclosures, electrical boxes, and structural housings.
Open
Channels & Angles
Long-form sheet metal channels and angles formed on the Amada HDS CNC press brake. Structural shapes for equipment frames, mounting rails, and machine builds.
Open
Custom Form Tooling
Custom metal bending for one-off jigs, fixtures, and tooling components. CNC press brake forming from CAD or sketch — prototype through low-volume production.
Open
Hemmed Edges
Hemmed-edge sheet metal panels — safety-edge hems formed for cosmetic exteriors and food-grade equipment. Eliminates handling cuts and gives panels a finished edge.
Open
Mounting Brackets
Bent sheet metal mounting brackets — L, Z, and U brackets formed from laser-cut mild steel blanks for equipment mounting and machine build assemblies.
Open
Channels & U-Shapes
Custom U channels and structural sheet metal sections for equipment frames and machine builds. CNC press brake forming with consistent bend geometry across the run.
Open
Custom Bent Profiles
Custom bent metal profiles formed from CAD files or hand sketches. Sheet metal bending services for prototype-through-production runs in mild steel, stainless, and aluminum.
Open
Flanges & Tabs
Bolt flanges and weld tabs formed directly into sheet metal parts to simplify joining and reduce secondary welding work. CNC press brake forming for industrial assemblies.
Open
Panels & Covers
Formed sheet metal panels and equipment covers with hemmed edges. CNC press brake forming for access doors, equipment skins, and instrument enclosures.
Open
Custom Weldments
Custom weldments combining MIG and TIG welding services for industrial equipment assemblies. Multi-process weldments built from in-house laser-cut and press-brake-formed components for one-shop quote and delivery.
Open
Equipment Enclosures
Welded equipment enclosures for industrial and outdoor installations — sealed seams, weather-rated welds, and finished from in-house cut, formed, and assembled mild steel components.
Open
Repair Welding
Repair welding services for damaged or legacy equipment components — MIG, TIG, and stick rework on existing parts. Common on heavy equipment, mounting brackets, and discontinued OEM components.
Open
Sub-Assemblies
Welded sub-assemblies for OEM equipment manufacturers — production-welded to spec, finish-prepped, and delivered ready for final installation in industrial machinery.
Open
Computer Chassis
Computer chassis fabrication — electronics chassis with punched vent perforations and threaded inserts. CNC turret punching with formed-in mounting features for the rack.
Open
Custom Perforation Patterns
Custom perforation patterns for decorative architectural panels and functional airflow grilles. CNC turret punching with custom tooling for unique pattern designs.
Open

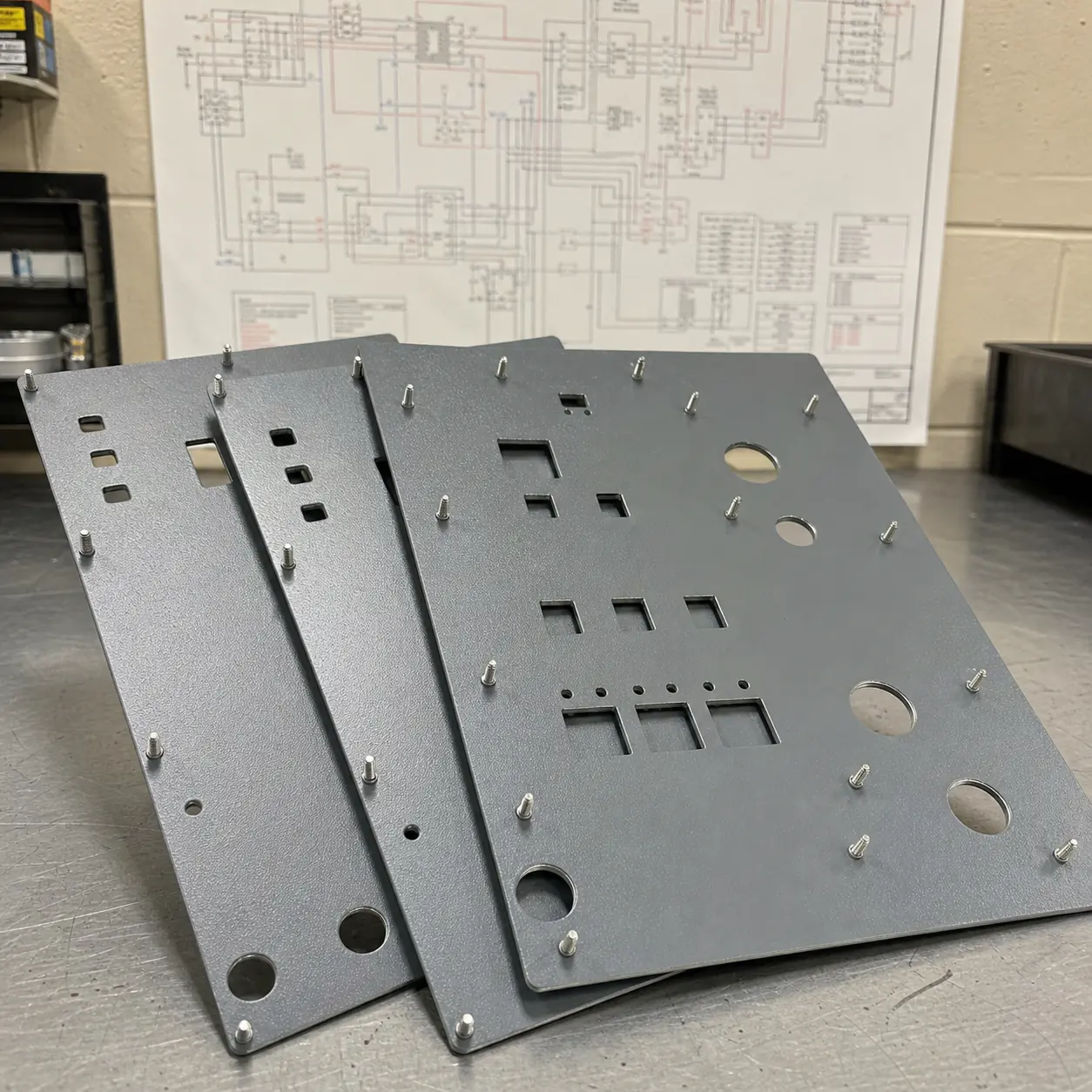

Electrical Enclosure Panels
Punched electrical enclosure panels with knockouts, conduit punches, and mounting features. Production sheet metal panels for industrial control cabinets.
Open

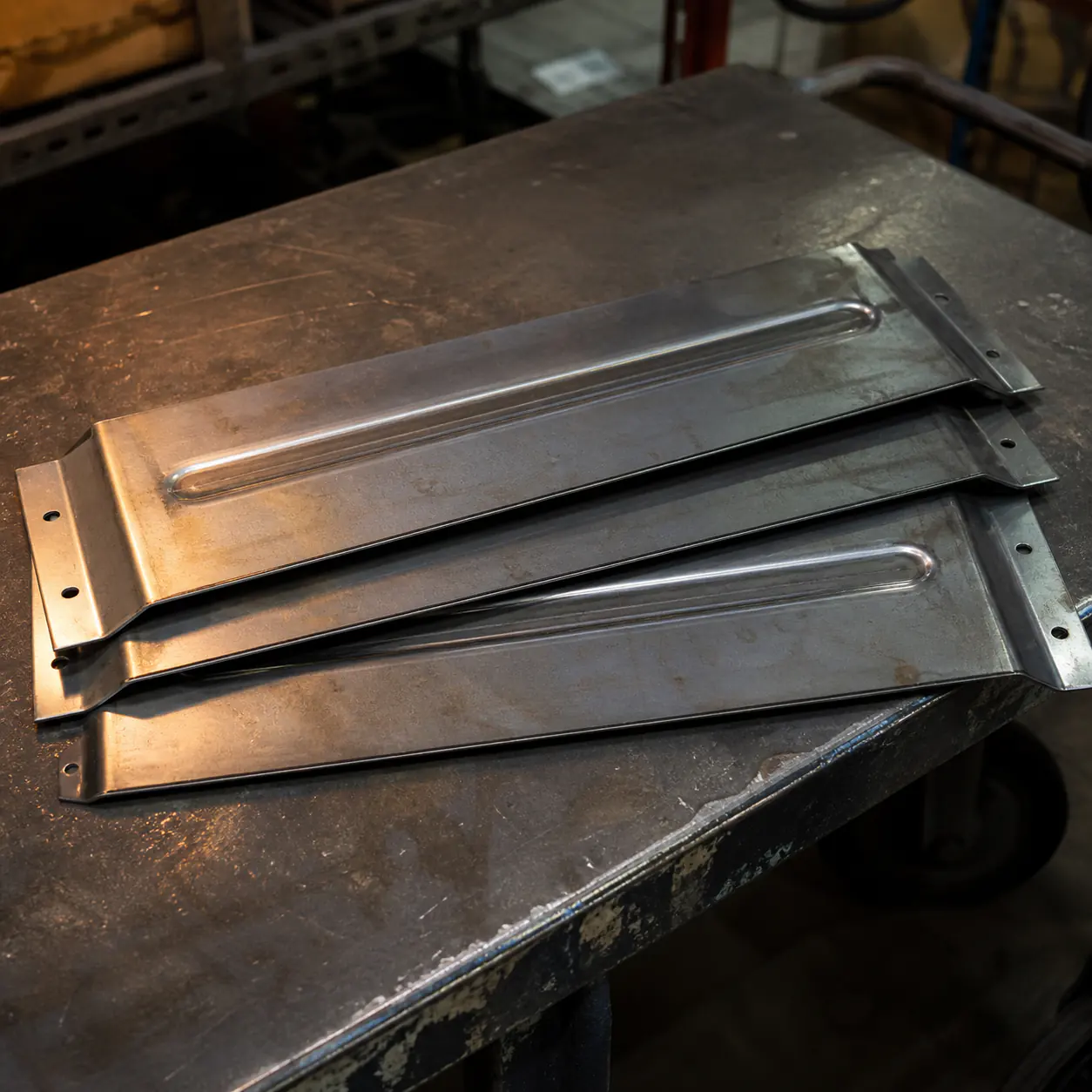

Embossed Stiffeners
Embossed stiffeners — stiffening ribs and embosses formed directly in flat sheet metal during the turret punching cycle. Adds rigidity without secondary forming.
Open

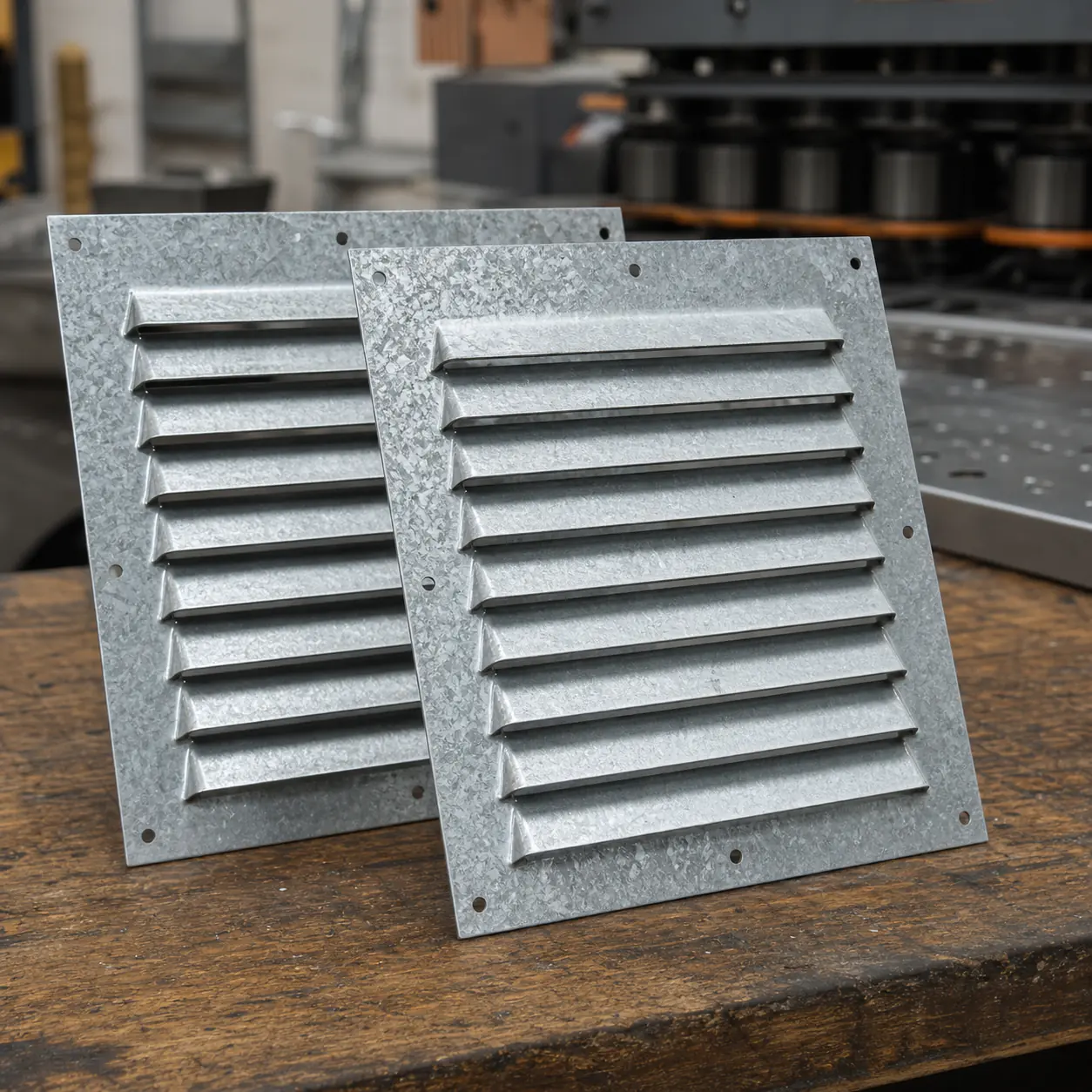

Louvre Panels
Production louvre panels — architectural and equipment louvre panels with formed-in vents punched on the Trumatic 200. Volume production for HVAC and equipment ventilation.
Open

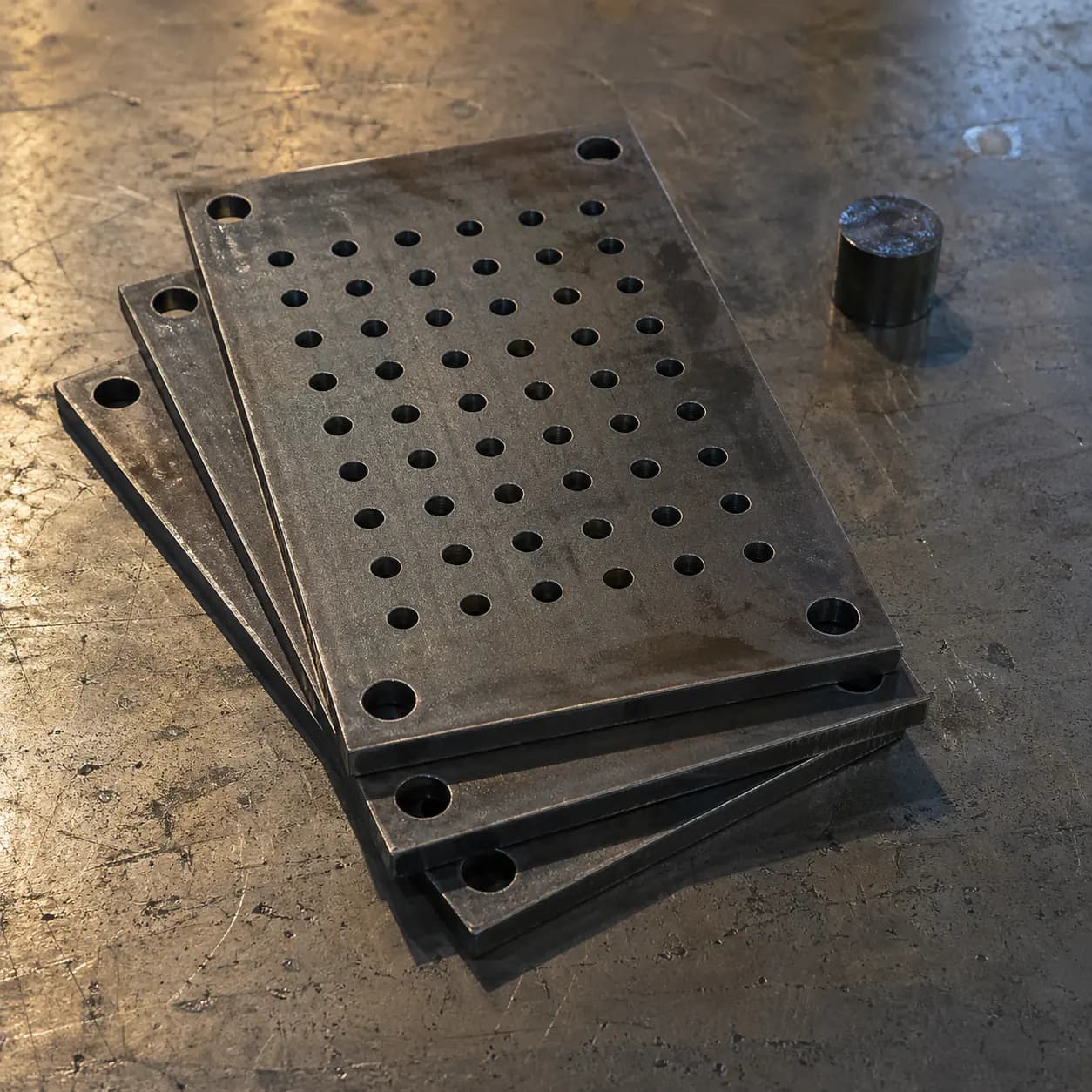

Mounting Plates
Punched mounting plates with regular bolt-pattern hole arrays — hundreds of holes per panel run on CNC turret punching for production-volume mounting work.
Open

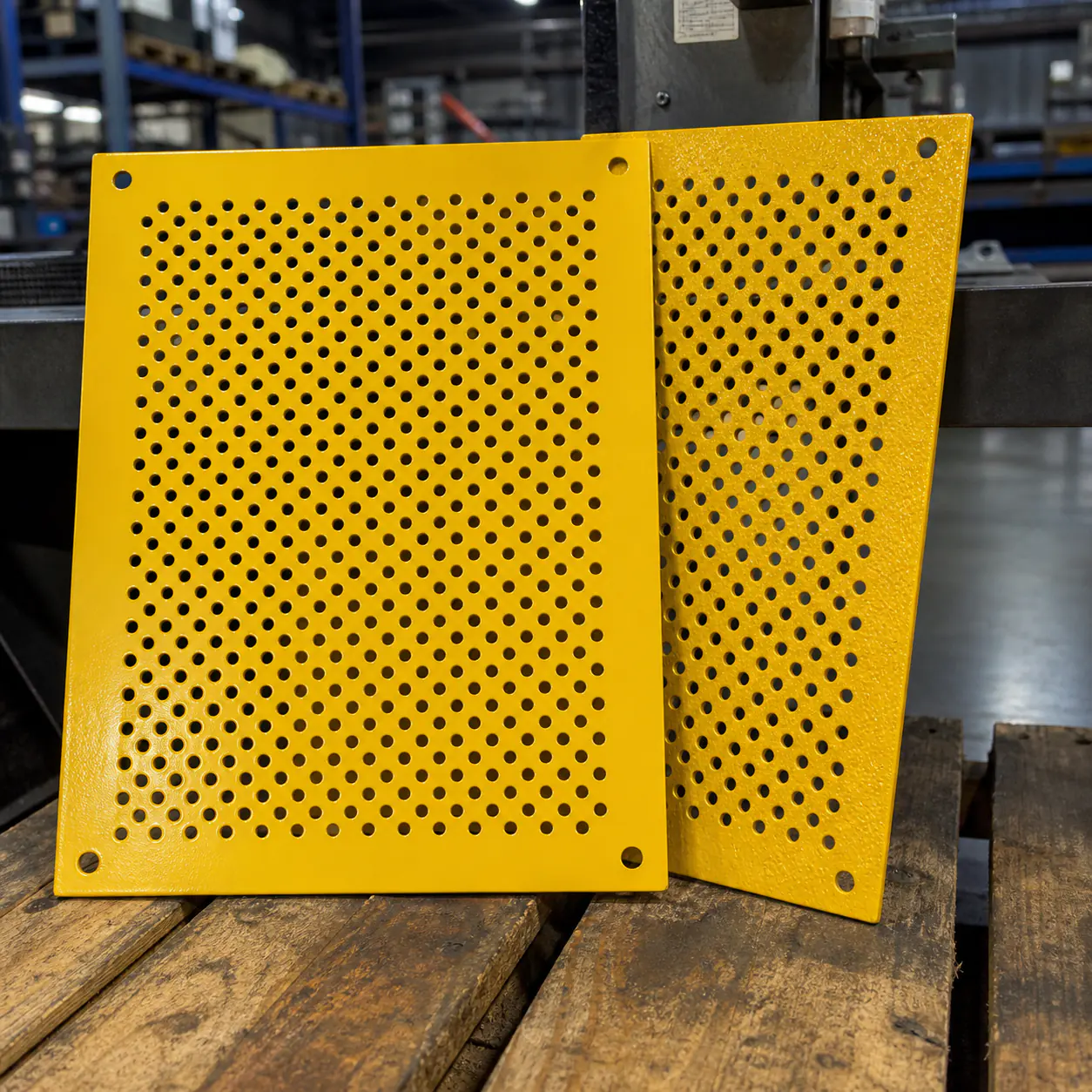

Perforated Guards
Perforated equipment safety guards with high-density perforation patterns — CNC turret punched for airflow and operator visibility on production equipment.
Open
Decorative Architectural Panels
Decorative architectural panels with custom perforation patterns punched on the Trumatic 200 — interior screens, dividers, and metal facade elements.
Open
Electrical Chassis Blanks
Electrical chassis blanks punched with countersinks and lance-and-form mounting tabs. Production-volume electrical enclosure panels for industrial control work.
Open
Equipment Enclosure Sides
Equipment enclosure side panels with integral formed features — box and rack panels with louvres, knockouts, and mounting tabs from one CNC turret punching program.
Open
Hat Channel Forms
Lance-and-form hat-section structural elements created in the turret punch — stiffeners and supports formed directly into sheet metal during the punching cycle.
Open
HVAC Plenum Sides
HVAC plenum side panels with louvred returns and access cutouts in galvanized sheet. CNC turret punching for commercial mechanical fabrication and Greater Toronto Area HVAC contractors.
Open
Louvre Patterns
Production-volume louvre and slot patterns punched into sheet metal stock. CNC turret punching for HVAC, electrical, and equipment ventilation panels.
Open
Production Run Sheet Parts
Production run sheet metal parts in volumes from 1,000 to 50,000 units. CNC turret punching beats laser on speed and per-piece cost at this volume.
Open
Custom Enclosures
Sealed welded custom metal enclosures for outdoor and industrial equipment. Cut, formed, and welded in one in-house workflow for one quote and one delivery from our Brampton fabrication shop.
Open
Equipment Frames
Heavy structural equipment frame fabrication — tube and plate components MIG-welded into rigid weldments for industrial machinery and OEM equipment manufacturers across the GTA.
Open
One-Off Specialty Builds
One-off custom metal fabrication built from a drawing, sketch, or physical sample. Specialty fabrication for replacement parts, custom builds, and prototypes that don't fit a stock catalog.
Open
Production Sub-Assemblies
Production sub-assemblies for OEM equipment manufacturers — multi-part welded fabrications built under one PO and delivered ready for final installation. Volume runs welded to spec with traceable documentation.
Open
Custom Replacement Parts
Custom replacement parts reverse-engineered from a sample, drawing, or worn original. One-off fabrication for legacy equipment with no spare-parts source — laser cut, formed, machined, or welded as the part requires.
Open
Investor Samples
Polished, finished prototype metal parts for investor demos and pitch meetings. Production-equivalent samples that look like the final product — same materials, same finish, single-piece run.
Open
Pre-Production Run
Pre-production pilot run — 10 to 50 piece batch fabricated from production materials before committing to full tooling. De-risks the design and verifies the finished part performs as drawn.
Open
Welded Test Assembly
Welded prototype test assembly built for fit, function, and design validation. Multi-part metal prototyping for engineering teams that need to verify the part before committing to a production run.
Open
Quote a mild steel project.
Send a CAD file or a hand sketch — same-day quotes, ISO 9001:2015 documented quality on every order.
