HVAC
HVAC manufacturers — plenums, ductwork, diffuser panels, damper housings, equipment chassis.
Gallery(13)

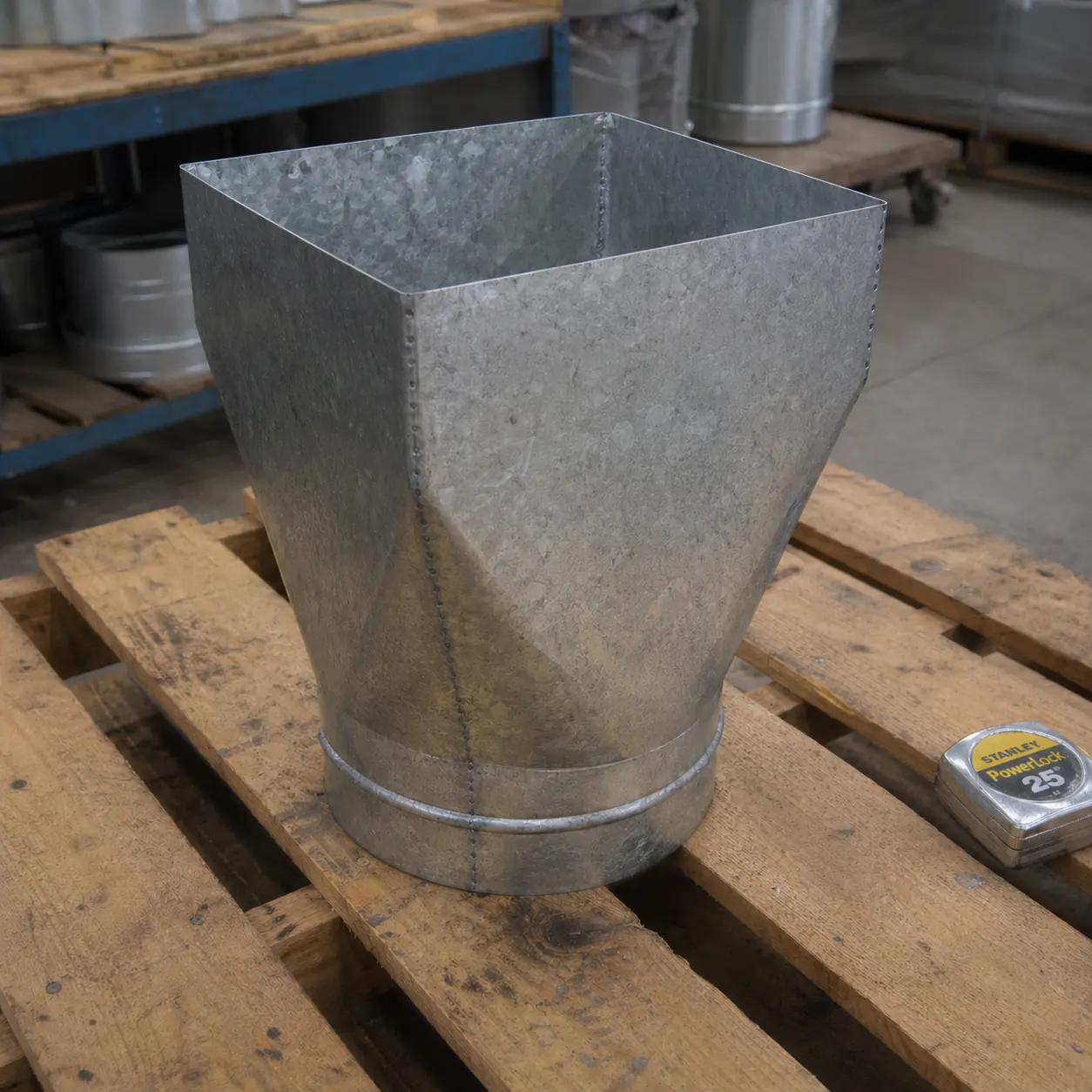

Welded HVAC Ductwork
Custom welded HVAC ductwork in galvanized steel — elbows, transitions, and reducers fabricated in one shop for GTA mechanical contractors. Sealed seams hold to commercial pressure spec; staged ready for the install crew.
Open

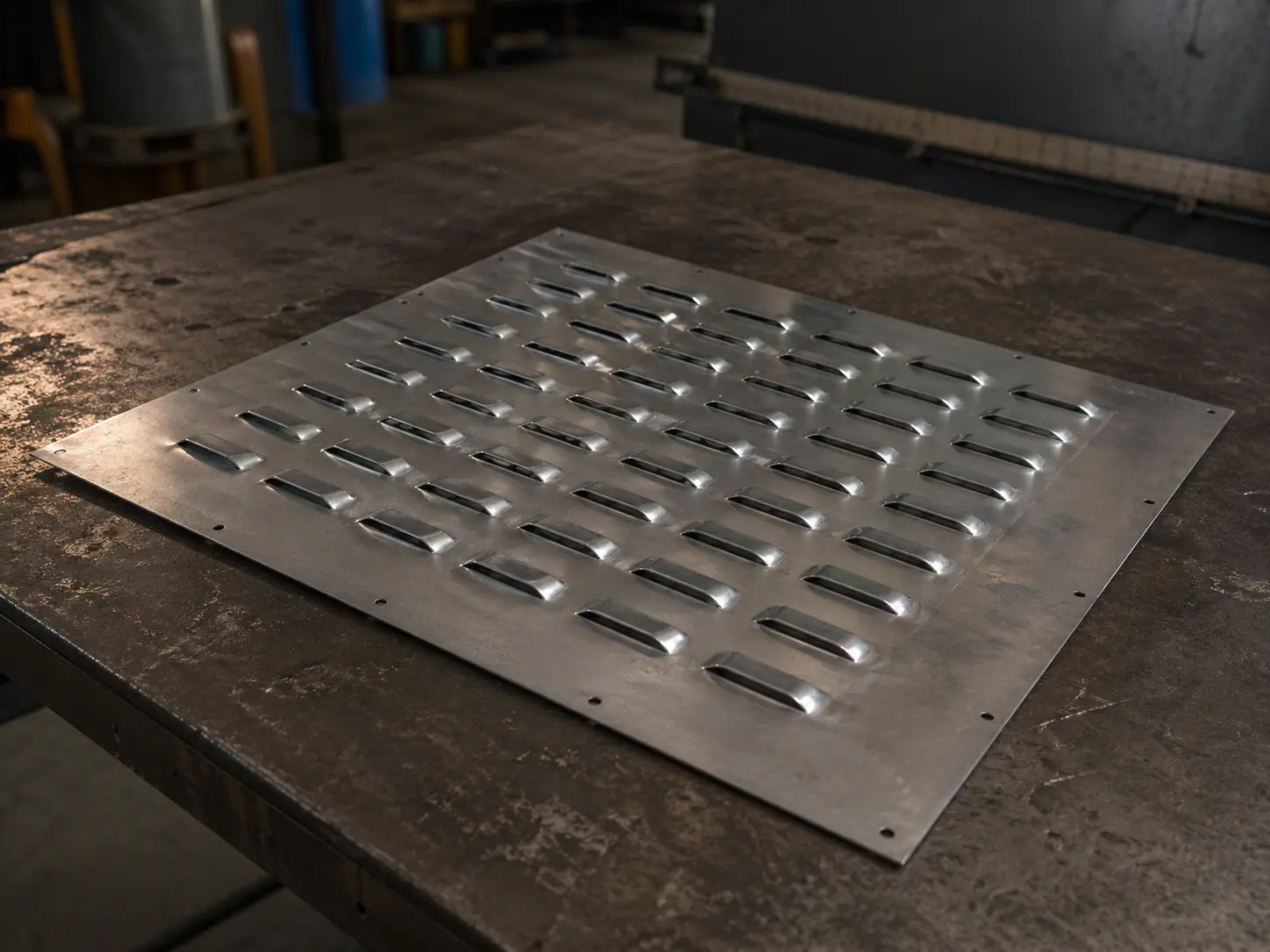

Punched Ventilation Panel
CNC turret punched ventilation panel with a high-density louvre pattern punched on the TRUMPF Trumatic 200. Each louvre formed integral to the punching cycle — no secondary forming step, production yield of 200 panels per shift.
Open
Ventilation System Component
Sheet metal punching for an HVAC ventilation system component with formed louvres and a perforated face panel. Punched on the TRUMPF Trumatic 200 in a single program — perforation, louvres, and mounting holes integral to the cycle.
Open
HVAC Plenum Box
Custom sheet metal fabrication for an HVAC plenum box in galvanized steel. Bent on the Amada HDS press brake, seam-welded, and engineered with internal acoustic-liner clearance during DFM review.
Open

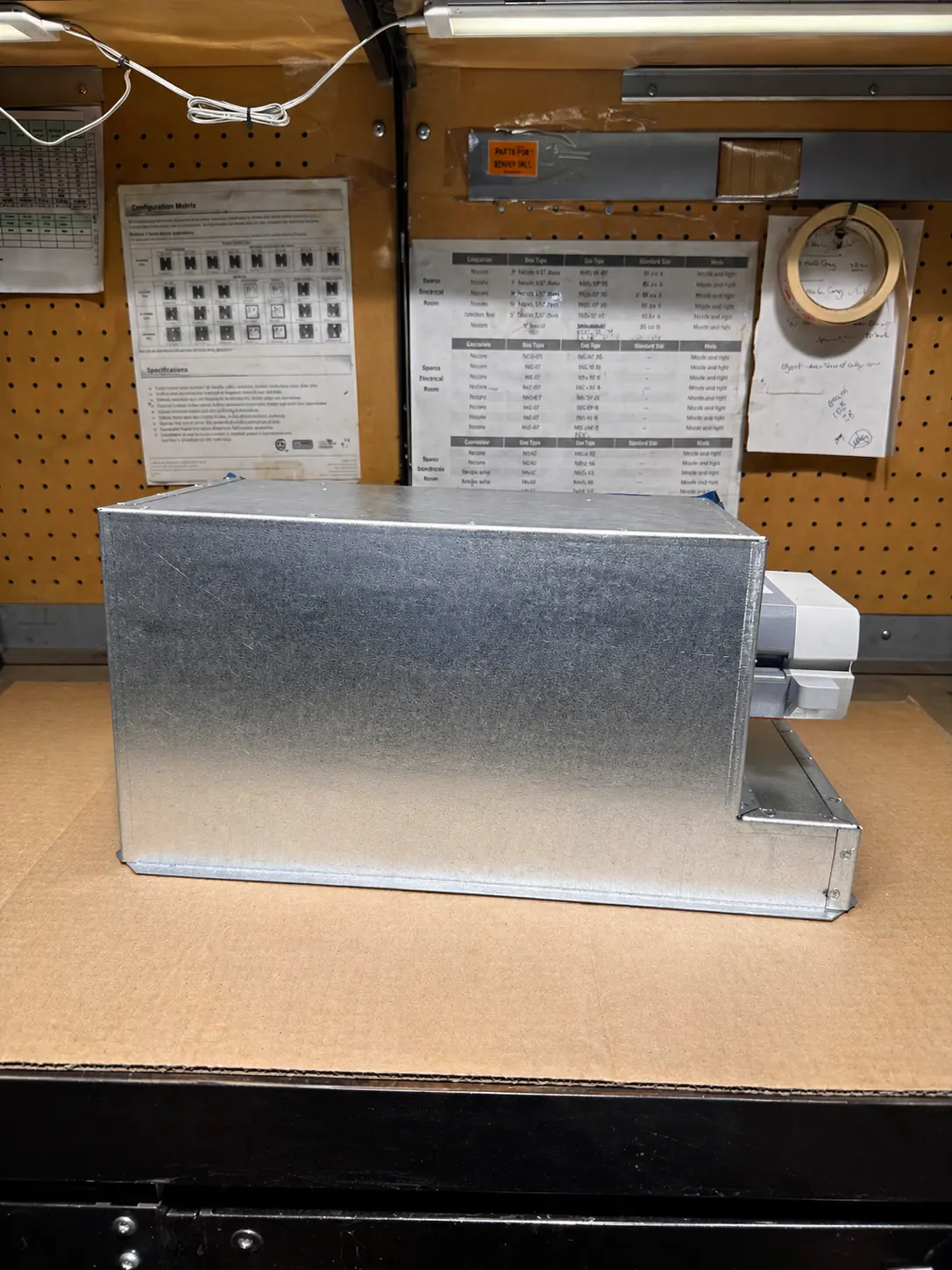

Motorized Damper Assembly
Custom-fabricated motorized HVAC damper assembly with sheet-metal housing, formed blades, and integrated mounting frame. Production run for a building-systems integrator, ready for actuator installation.
Open
HVAC Air Diffuser
Custom HVAC sheet metal diffuser with formed deflector blades and a mounting flange. Production-volume run for a commercial mechanical integrator — ships ready to install with no field rework.
Open

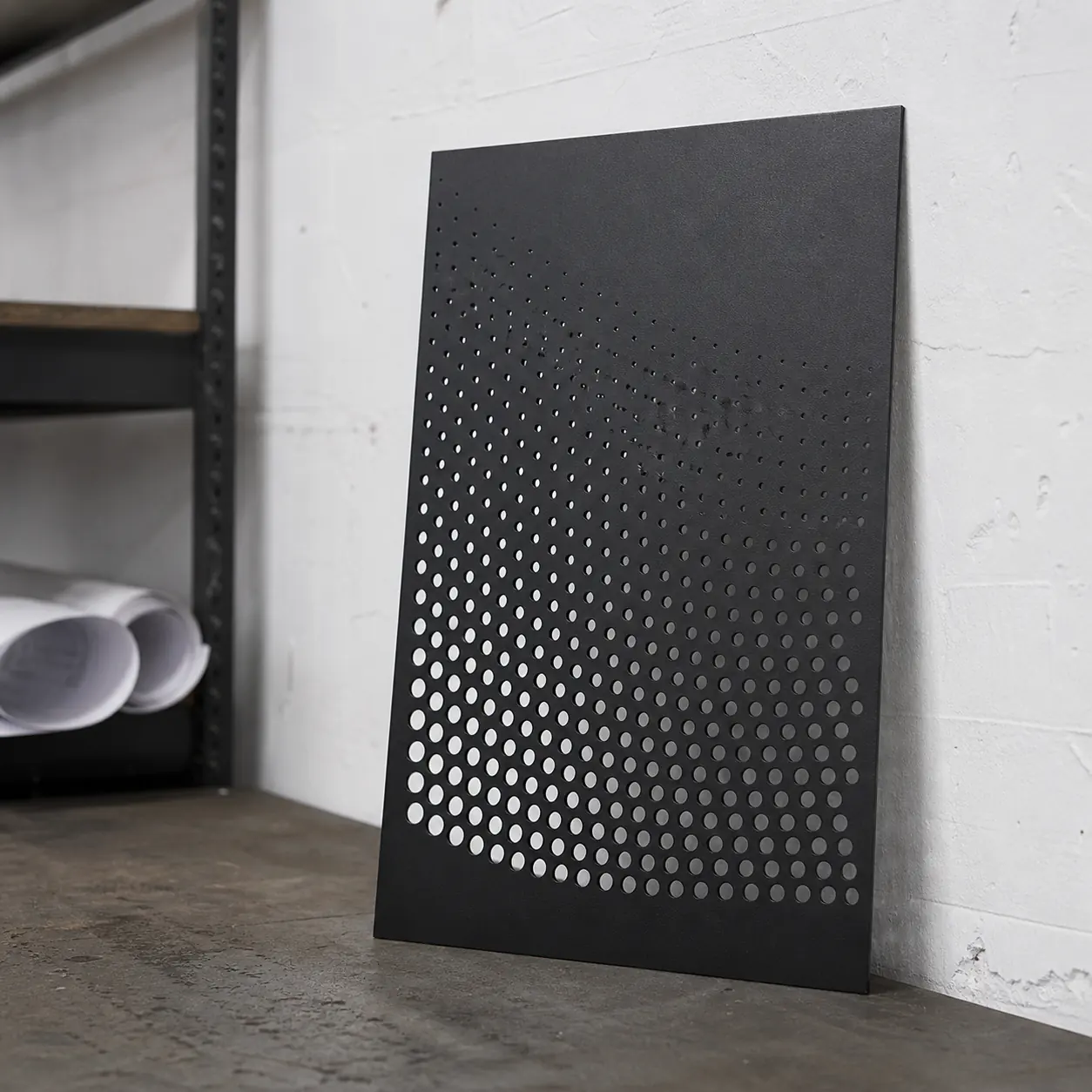

Decorative Architectural Panels
Decorative architectural panels with custom perforation patterns punched on the Trumatic 200 — interior screens, dividers, and metal facade elements.
Open

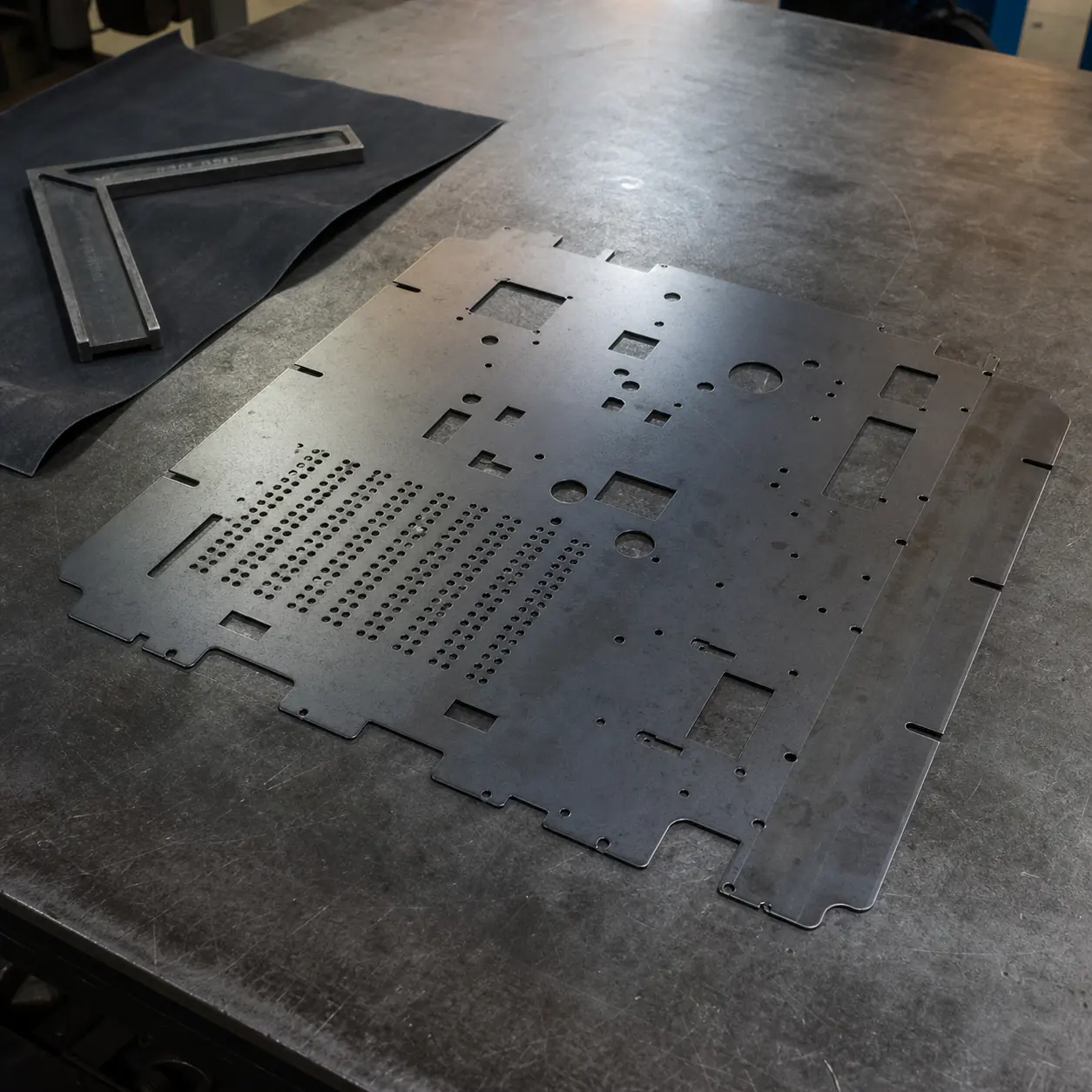

Electrical Chassis Blanks
Electrical chassis blanks punched with countersinks and lance-and-form mounting tabs. Production-volume electrical enclosure panels for industrial control work.
Open

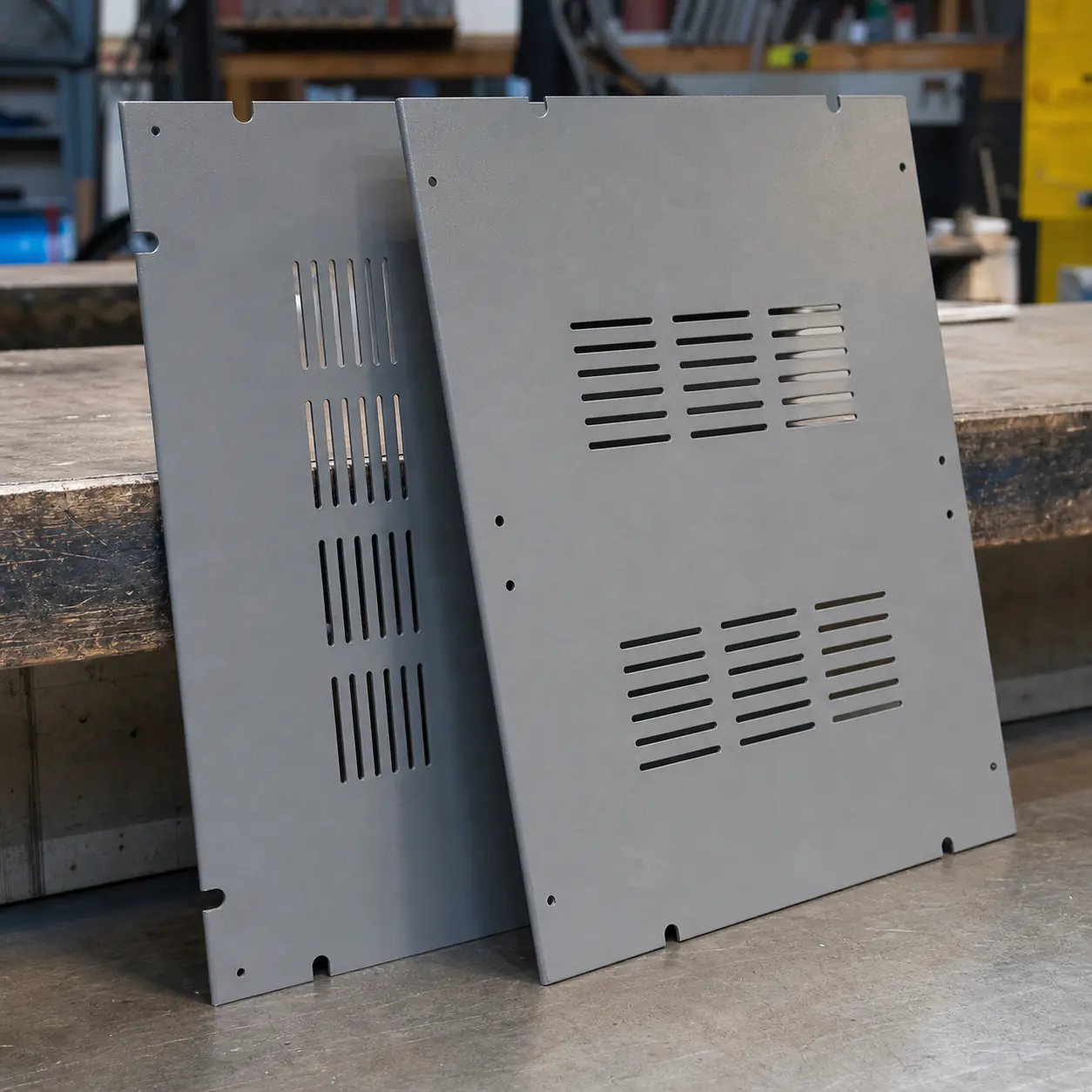

Equipment Enclosure Sides
Equipment enclosure side panels with integral formed features — box and rack panels with louvres, knockouts, and mounting tabs from one CNC turret punching program.
Open

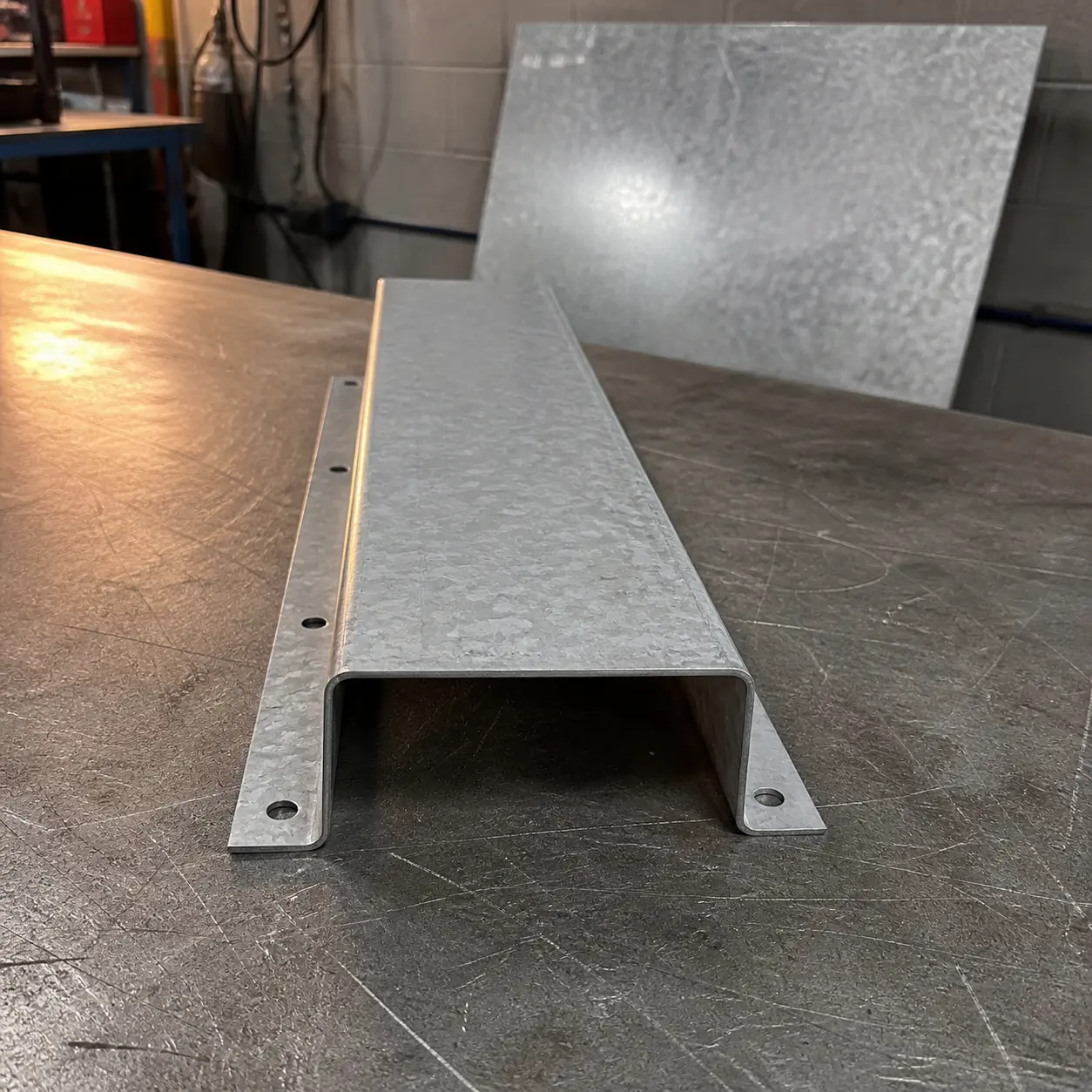

Hat Channel Forms
Lance-and-form hat-section structural elements created in the turret punch — stiffeners and supports formed directly into sheet metal during the punching cycle.
Open

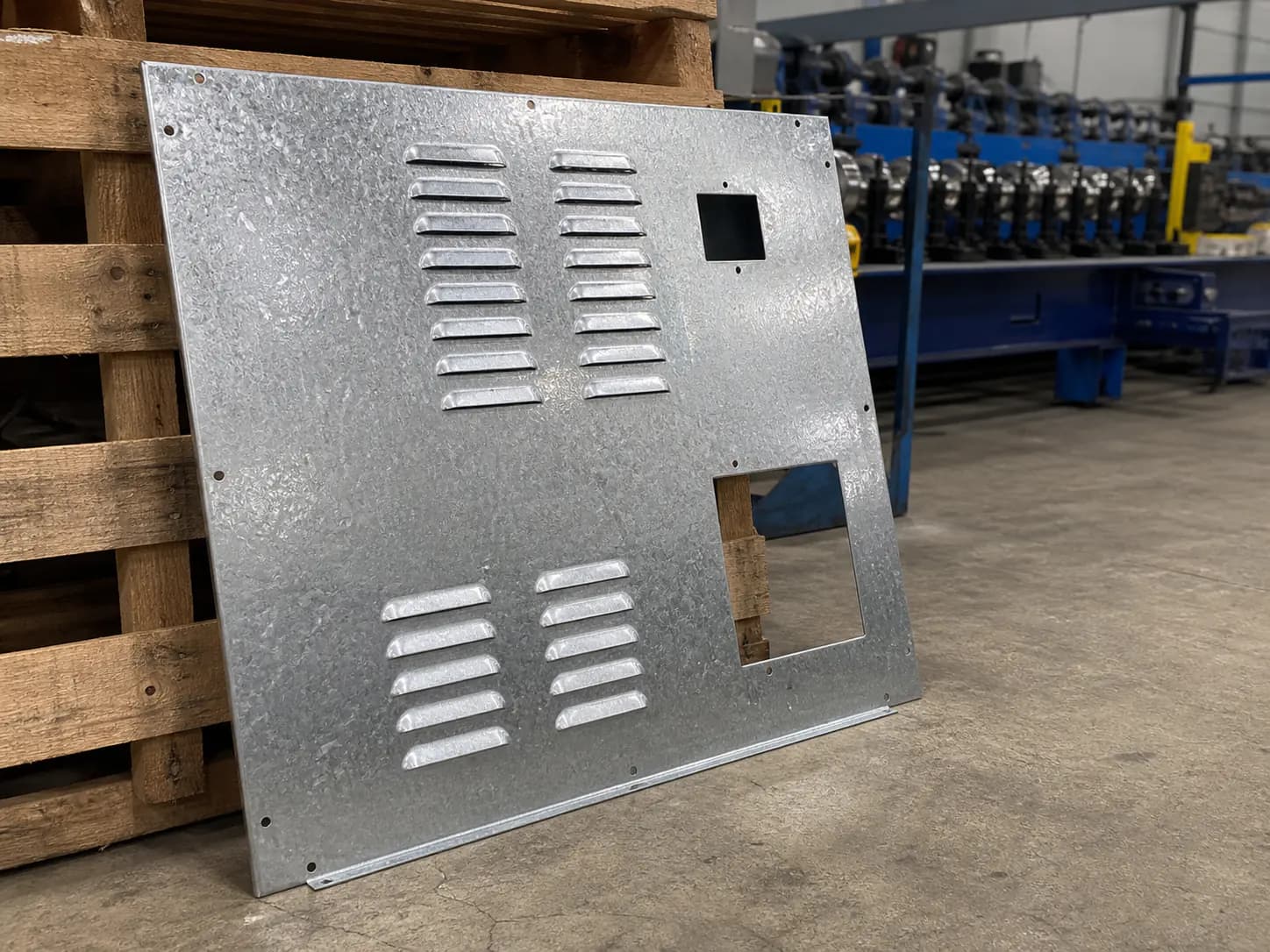

HVAC Plenum Sides
HVAC plenum side panels with louvred returns and access cutouts in galvanized sheet. CNC turret punching for commercial mechanical fabrication and Greater Toronto Area HVAC contractors.
Open

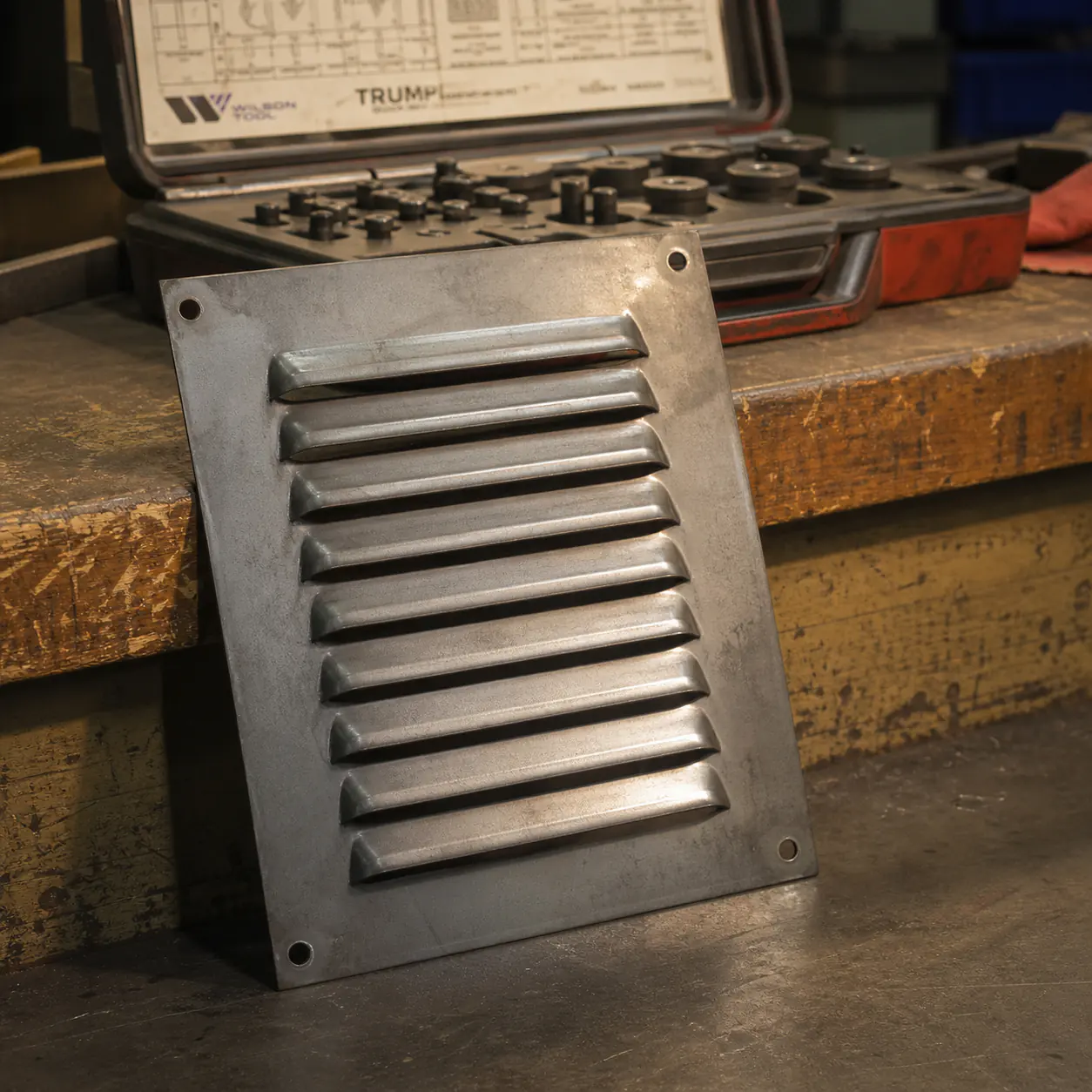

Louvre Patterns
Production-volume louvre and slot patterns punched into sheet metal stock. CNC turret punching for HVAC, electrical, and equipment ventilation panels.
Open

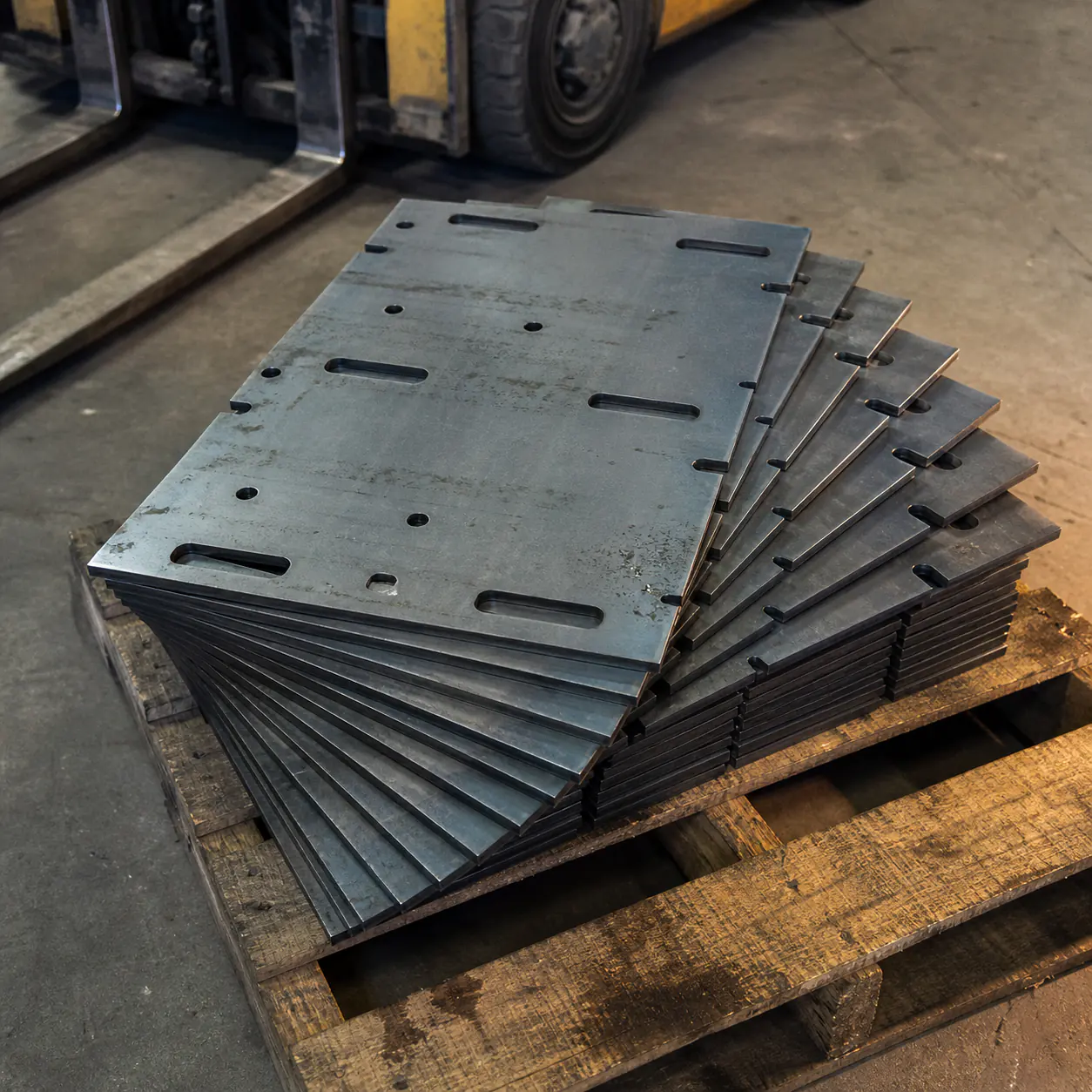

Production Run Sheet Parts
Production run sheet metal parts in volumes from 1,000 to 50,000 units. CNC turret punching beats laser on speed and per-piece cost at this volume.
Open
Quote a hvac project.
Send a CAD file or a hand sketch — same-day quotes, ISO 9001:2015 documented quality on every order.
